MODELLING

MODELLING TOOLS

Eight modelling tools per packet. Each pack contains four double ended tools with round and flat heads for styling.  Tools are made of stainless steel.

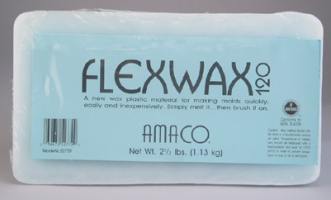

FLEXWAX

This versatile mould making material is simple to use. Simply melt it, then brush it on. Ideal for use with three dimensional objects, making face masks, casting hands etc. Moulds made with Flexwax can be remelted and used again and again.

Flexwax melts to a clear, honey like liquid at 49 degrees Celsius. It can be applied to the skin by brushing or dipping. It cools in a few minutes to form a tough, flexible mould.

MOULD RUBBER - LATEX

Make your own Rubber Moulds with Latex Mould Making Rubber.

• Latex must be bubble free - if necessary, skim any bubbles off the top.
• Pour latex into a container which will accept the master.
• Attach master to a suitable holder and slowly immerse the master into the latex.
• Ensure the master is clean and dry before immersing.
• Slowly withdraw the master - without shaking. Prick any air bubbles.
• Again, immerse the master in latex and leave for 3 - 5 minutes.
• Withdraw slowly (30 seconds) and rotate until surface stabilises.
• Leave overnight to cure.
• If desired, a more thick mould may be obtained by mixing a layer of sawdust and latex.
• Strip the mould from the master under warm, soapy water.
• Wash, dry and dust with talcum powder. A light dusting of talc inside the mould will help prevent blocking.

If the master has significant undercuts, ease the latex away from the undercut and roll off the master. A mould immersed in warm water is easily rolled back to the correct shape.

MOULD RUBBER - REMELTABLE RUBBER

MELTING VESSEL

This should be aluminium, stainless or tin, copper or zinc are unsuitable.
For small quantities a saucepan can be used, heated over an electric hot plate or gas ring.

MELTING PROCEDURE

Cut the reusable moulding rubber into small pieces and place a handful into the heated vessel.
Commence heating with a moderate heat and stir immediately, the rubber will begin to melt, approx melting time for 500 grams is 30 minutes.
Do not increase the heat, continue to add small amounts of rubber until a sufficient quantity has been melted, continue stirring until the rubber is completely liquid and runs evenly and smooth from a spoon, if smoking starts reduce heat immediately.
It is advisable to use a thermometer in order to check the temperature, this should have a reading up to 200^oC. The vessel should be removed from the heat when a temperature of 135^oC has been reached, at this temp, the rubber should be completely liquid, allow the rubber to stand for a few minutes until the air bubbles cease to rise. During this period stir gently to assist cooling, when the temperature of the rubber has fallen to l20^oC it is ready for pouring.

REMELTING MOULDS

When the rubber mould becomes damaged or worn out, cut it up, inspect the pieces for clean lines, dirt can be washed off with water, the water will not affect the rubber. The rubber can be melted many times before it looses its elasticity, however it is not advisable to mix up discoloured or burned rubber with new moulding rubber.

MODELLING CLAY - FOR MAKING MASTERS

CHAVANT HARD STYLING CLAYS

Industrial Design Clay is manufactured in several formulations to suit the exacting requirements of the auto industry and product designers. All formulations can be carved, extruded and slicked to an extremely accurate, glass like finish. The clays join easily, will not show seams, do not crack under normal circumstances, hold fine detail, can be shellacked, painted, reused and moulds can be taken from the surface.

CM-50: A “medium-hard”, dark brown formulation, considered the softest of the Hard Styling Clays.
J525: A “hard”, light brown formulation.

NSP Hard: Sulphur Free to minimise difficulties associated with mould making with Rubber Silicone.

HIGH GLOSS SEALER & GLAZE & CASTING PIGMENTS

Item # 3080604 - High Gloss Sealer & Glaze.  This is a water base acrylic emulsion developed specifically for plaster and gypsum cement products.  Dries fast to a high gloss, non haze finish that is unaffected by water and many chemicals.

Casting Pigments are water dispersed pigments for plaster, gypsum and cement which becomes the base colour.  Developed for inside/outside use in plasters and cement.  Suitable for other mediums.  Adds strength and chip resistance to dried castings.  Provides easy, uniform dispersion of colour to create a natural, smooth quality surface for detailing and antiquing.  Too much pigment can retard setting time and weaken casting.  Non toxic, environmentally safe, easy water cleanup, light fastness.  Actual colours vary depending on how much pigment you use. 4oz bottle.  Item # 3087504 - Ebony Black and Item # 3087604 - Ivory.

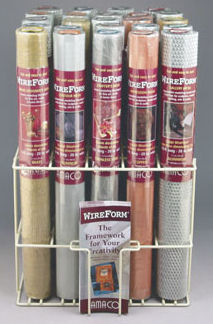

MODELLING GRID / WIRE MESH

Art and craft sculptural support. Cut with scissors, flexible memory.

Item # 1890213	Item # 1890279	Item # 1890280
100% Aluminium Sparkle Mesh 1/8" 16" x 20" sheet	100% Brass 80 Mesh Woven 500 x 400mm	100% Copper 80 Mesh Woven 500 x 400mm



Item # 1890010 - Contour Mesh 1/16 - Aluminium 1.5m x 0.5m
Item # 1890014 - Impression Mesh 1/8 - Copper 1.5m x 0.5m
Item # 1890027 - Designers Mesh 18 mesh - Brass 1.5m x 0.5m
Item # 1890029 - Crafters Mesh 16 mesh - Stainless Steel 1.5m x 0.5m



---

METAL SHEET

---

Soft Metal sheets are available in 100% pure pewter, copper, brass, aluminium and coloured aluminium.  It can be used to decorate virtually any object or room in your home.  A fine point stylus is all that is needed to trace a pattern into the metal.

There are two weights of metal sheets  - light & medium.  Light sheets are perfect for intricate detail patterns and decoration of lightweight objects such as greeting cards and gift tags.  The medium weight sheets work well on photo albums, picture frames, gift boxes, as well as for a variety of fine art projects.

Item # 1890363 - Pewter Medium Weight  9.25 x 12"

Item # 1890364 - Brass Light Weight  9.25 x 12"

Item # 1890368 - Aluminium Light Weight  9.25 x 12"

Item # 1890373 - Bright Red Light Weight  9.25 x 60"

Item # 1890374 - Violet Light Weight  9.25 x 60"

Item # 1890377 - Bright Gold Light Weight  9.25 x 60"

Item # 1890378 - Mint Light Weight  9.25 x 60"

Item # 1893114 - Black Light Weight  9.25 x 60"



These metals are soft and can be deep drawn, and are therefore particularly suitable for metal embossing.  These sheets are coloured on both sides.

Item # 3600507 - 0.15mm Mint/Silver Aluminium Sheet - A4 size

Item # 3600550 - 0.15mm Silver Aluminium Sheet - A4 size

Item # 3600551 - 0.15mm Gold Aluminium Sheet - A4 size

Item # 3600552 - 0.15mm Copper Aluminium Sheet - A4 size

Item # 3600553 - 0.15mm Red Aluminium Sheet - A4 size

Item # 3600556 - 0.15mm Green Aluminium Sheet - A4 size



The copper sheets are produced from pure electrolyte copper.  These copper sheets can be patinated.

Item # 3600806 - 0.10mm Copper Sheet - A4 size

Item # 3600810 - 0.10mm Copper Sheet - 600mm wide



Item # 3600860 - 100ml Copper Toner : Turns Copper black.  Clean Copper with soap & water and lightly buff before pouring toner onto desired area.

Item # 3600878 - 100ml Greenspan : turns toned Copper green for an aged look.  Apply once toner has blackened the cleaned copper.

Due to the nature of these two products they are available for shipping only within NZ.

WET & SHAPE

Easy to use fabric. Simply wet it with water and shape it as you wish. Fabric retains its shape as it dries. Paint or decorate to suit.

Shape bows, drapes and more for a durable look of fabric without constant straightening.

Item # 1481023

Wet & Shape



TEXTURE PLATES

Textured International designs moulded into flexible, sturdy plastic sheets can be transferred quickly and easily to modelling clays and soft embossing metal sheets.  Press designs into clay or metal sheets using a rolling pin or brayer.  Pass clay and Texture Plate through a Pasta Machine or use a rolling pin to embed design.  Transfer designs to paper by rubbing with coloured pencils or crayons.  Can be used for Greeting Cards, Scrapbooks/Journals and Home Decor Items.  Pack includes the three plates pictured, each 8.5" x 5.5".

Item # 1890116
